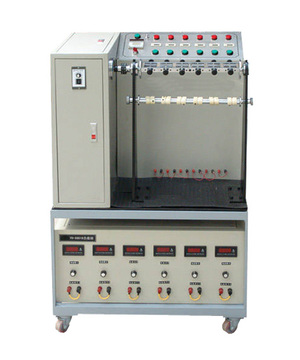

Product name: lead bending machine lx-817a with load plug product model: lx-817

Lx-817 plug lead bending tester (with load)

Test standard :UL, IEC, VDE standard, specially for testing the bending strength of outlet wires and wires of power plugs. The test method is to fix the test material on the fixture, and add a certain load, when the test clamping its left and right swing, after a certain number of times, to inspect its breakage rate; Or to the power is not able to bear the test load, check its total number of swings. This machine can count automatically, and stop the operation automatically when the test material is bent until it cannot be energized.

Main parameters:

1) fixture :6 sets

2) swing Angle :10-180 continuously adjustable

3) swing speed :10-60 times adjustable

4) automatic counter :6 counts respectively

5) cut code of charge claw :50,100(113), 200,300 (284),500g

6) with or without load test selection function

7) load range :AC o-30a or DC o-5a (adjustable for six groups)

8) volume: bending machine :85x51x8 1cm load box :85x40x35cm
