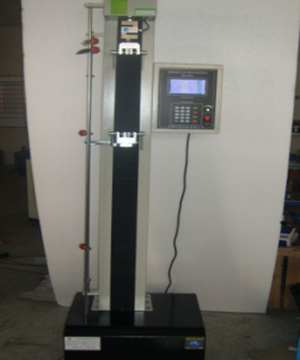

The tension testing machine, with high-quality Japanese Oriental motor, bearing, screw as the transmission mechanism, is designed according to the market demand of a high-end large-screen LCD digital display, microcomputer system control, high-performance mechanical structure as the theme. The whole machine with low noise, multi-function, large power, simple operation, small structure, high accuracy, complete functions as the core. It is mainly used to test the stretching, elongation, stripping, displacement and tearing of wire, metal, nonmetal, rubber and building materials.

Ii. Main technical parameters:

1. Power supply: AC220V/50Hz

2. Power: 750 w

3. Maximum tensile strength: 200kg (maximum)

4. Stroke: 1000cm (excluding fixture)

5. Display mode: large screen LCD, all Chinese multi - visual window display

6. Load resolution: 1/30000

7. Load accuracy: ±1%

8. Test speed: adjustable 25-500mm/min

9. It has the function of breaking and stopping

10. Unit switching: real-time display for kg, N and IB

11. Pulling stops automatically

12. With displacement display, displacement accuracy 0.001mm

13. With the automatic test function of 25cm elongation

14. Meet various test standards

15. Number of test pieces :1PCS

16. Size: 600 (L) * 400 * 1780 mm (H) (D)

17. Weight (approx.):150kg

18. With printing function
