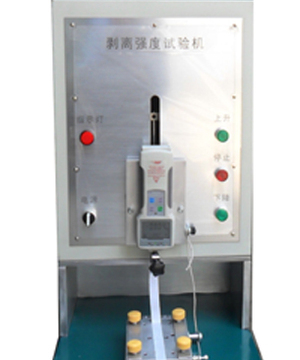

Product name: stripping strength tester product model:

1.1. Technical requirements

1) the stripping strength tester is a special testing instrument for the production process control of copper clad plate and printed circuit board, which is used to detect the adhesion between copper foil and substrate. This instrument is mainly equipped for the Chinese market, and its input power is AC220V / 50Hz.

2)2) characteristics of peel strength tester:

● high quality motor and precision module drive, small vibration, low noise;

● Japanese high quality tension meter with rs-232 port;

● equipped with Japan KANON printing system, can accurately print the data of the force, and automatically calculate the average of the data;

● maximum tension: 49N;

● soft and hard strip test fixture can be replaced freely, one machine: a strip strength tester can test both flexible strip strength and rigid strip strength;

The product conforms to ipc-tm-650 2.4.8 standard, ipc-tm-650 2.4.9 standard, GB/T 4677-2002 7.1.1 standard, GB/ t13557-92 standard,Q/ZY 1-2006iec326-21990 printed circuit board test method 7.1 standard.

Shape: width 348 mm× depth 360 mm× height 685 mm;

4. Voltage/frequency/current :AC220V / 50 Hz/1A;

5. Maximum stroke: 58mm;

6. The rising speed was "50.8±2.5 mm/min";

Maximum pull: 50 KGF (unit switch: kg.n.b swap).
