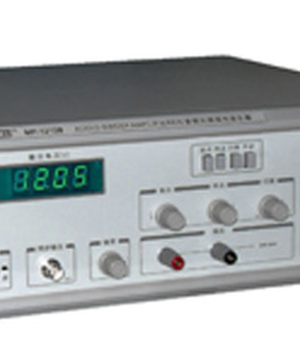

Mp-1212 series audio frequency sweep signal generator USES advanced voltage controlled oscillation circuit to produce stable and low distortion sine wave signal. Output amplitude and output frequency are displayed by digital tube. The sweep bit can reach more than 1:1000. The start point and end point of the sweep can be set arbitrarily between (20hz-20khz). (maximum output power: type B ≥20W, type D ≥40W, type E ≥60W, type F ≥80W, type G ≥100W). This machine also has the functions of starting up delay output, short circuit protection, etc., easy to operate, widely used in electroacoustic, telecommunications, etc., especially suitable for loudspeaker, earphone production and audio manufacturers.

Technical parameters:

1. Frequency range: 20hz-20khz

2. Frequency display error: display value 1×10 (-4) ±1 word

3. Sine wave output amplitude:

MP - 1212 - B: 0-12.8 Vrms 8 Ω load

4. Output voltmeter display error: ±10%

5. Sine wave frequency response: ±0.4dB (1kHz state)

6. Sine wave distortion: ≤0.5% (100hz-20khz frequency band)

Remaining frequency band: ≤0.8%

7. Output power: type B: ≥20W, type D: ≥40W, type E: ≥60W, type F: ≥80W, type G: ≥100W

8. Frequency sweeping: logarithm

9. Sweep frequency ratio: ≥1:1000

10. Sweep time: 1-20s

11. Synchronous output: TTL (square wave)

12. Operating voltage: AC220V±10% 50/60hz

13. Working environment: temperature: 0-40℃ humidity: ≤90%RH atmospheric pressure: 86-105kpa
