The product description

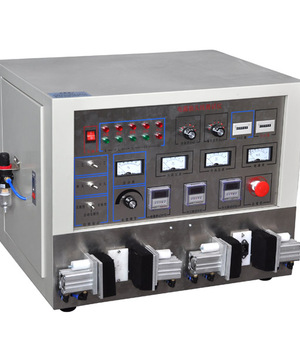

Product name: power plug line comprehensive tester

Product model: LX221

Compliance standards: UL, VDE, CSA, SAA, t-mark, KS, IRAM, CCC, etc

Scope of application: test the conduction polarity, insulation, core voltage, exposed copper and relative length of the power plug wire

Main functions:

1) adopt panasonic PLC as the main control

2) test line: single head: 2P non-polarity, 2P click non-polarity, 2P polarity, 3p non-polarity,

3P has polar double heads: 2P non-polar, 2P parallel, 2P cross, 3P parallel, 3P cross

3) counting function: automatic counting and ejecting function for qualified and defective products

4) qualified products are automatically eject and printed with qualified mark; Defective products automatically lock mold and sound and light alarm

Main parameters:

1) insulation voltage DC 500V; Yin insulation resistance: 2, 5, 20, 50, 100, 200 m Ω six gears

2) the internal high voltage AC is continuously adjustable from 0 to 5KV; Leakage current: 0.5, 1.0, 1.5, 2.0, 3.0

5.0, 10, 20mA

3) the external high voltage AC is continuously adjustable from 0 to 5KV / 1.5ma

4) wire sensitivity ≥10pF

5) test time: the time of insulation, inner and outer high voltage can be set arbitrarily

6) pressure 4 KGF/cm2 or less
