A simple introduction

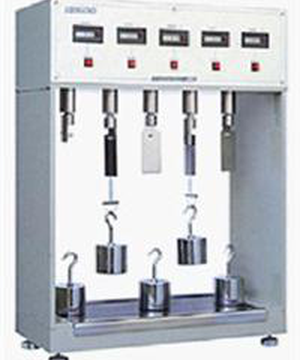

The viscosimeter is to hang the test plate with adhesive sample vertically on the test rack, the lower end of which is hung with the weight of the specified weight. After a certain time, the slippage displacement of the sample or the time of the sample's complete separation is used to characterize the ability of the adhesive sample to resist the slippage. It is suitable for testing the adhesion of pressure sensitive adhesive tape, medical adhesive, adhesive label, protective film and other products.

Application industry of adhesive tester: packaging quality supervision, pharmaceutical supervision, food and medicine, plastic rubber adhesive, petrochemical · biochemical vehicle non-metal adhesive tester test item: adhesive

The viscosity tester is suitable for testing the viscosity of pressure-sensitive adhesive tape, medical adhesive, adhesive label, protective film and other products.

provided

Microcomputer control, LCD display

Film key, PVC operation panel

Automatic timing and locking

six-station

The test principle of

The test plate affixed with adhesive samples is hung vertically on the test rack, and a weight of specified weight is hung at the bottom. The resistance of adhesive samples to pulling is characterized by the displacement of adhesive samples after a certain period of time, or the time of complete separation of samples.

Technical indicators

Fa code: 1000 g + 10 g

Test panel: 60mm (L)×40mm (B)×1.5mm (D)

Timing range: 1~999,999min work position: 5 pieces

Overall size: 450mm (L)×230mm (B)×600mm (H)

Net weight: 20 kg

standards

GB 4851, JIS Z0237, ASTM D3654
