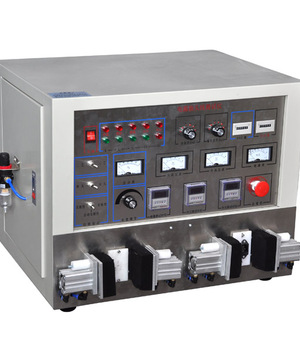

Product name: lx-221c product model: LX221C

Lx-221c single and double head power plug line comprehensive tester

Compliance standards: BSI, UL, VDE, CSA, SAA, BS, t-mark, KS, IRAM, CCC, etc

Scope of application: test the conduction polarity, insulation, core voltage, exposed copper and relative length of the power plug wire

Main functions:

1) adopt panasonic PLC as the main control

2) test line: single head: 2P non-polarity, 2P click non-polarity, 2P polarity, 3P non-polarity, 3P polarity

Double heads: 2P nonpolar, 2P parallel, 2P cross, 3P parallel, 3P cross

3) counting function: automatic counting and ejecting function for qualified and defective products

4) qualified products are automatically eject and printed with qualified mark; Defective products automatically lock mold and sound and light alarm

5) automatic cutting function: automatic mold locking for defective products, cutting function and sound and light alarm

Main parameters:

1. The insulation voltage 500 v, insulation resistance: 2, 7, 20, 50, 100, 200 m Ω

2. Internal high voltage AC 0-5kv continuously adjustable, leakage current: 0.5, 1.0, 1.5, 2.0, 3.0, 5.0, 10, 20mA

3. External high voltage ac0-6kv /1mA is continuously adjustable

4. Test time: insulation, inner and outer high voltage time can be set arbitrarily

5. Grounding resistance: cross flow 10 to 30 aac, maximum voltage: 6 vac, impedance range: 0-510 - m Ω

6. Wire sensitivity: greater than or equal to 10pF

7. Pressure greater than or equal to 4Kgf/cm
