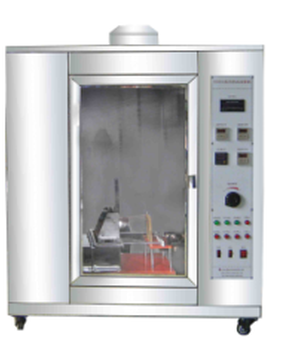

Glow wire tester would stipulate material (Ni80 / Cr20) and the shape of the heating wire (Φ nichrome wire 4 mm) in large current heated to test temperature (550 ℃ ~ 960 ℃), after 1 min to specified pressure (1.0 N) vertical burning hot try 30 s, inspect goods and bedding content whether light-off or the burning time is measured in electrical and electronic equipment products of fire risk; The ignitability, ignitability temperature (GWIT), flammability and flammability index (GWFI) of solid insulation materials and other solid combustible materials were determined. Glow-wire tester is suitable for the research, production and quality inspection of lighting equipment, low-voltage electrical appliances, electrical instruments, electrical and electronic products and their components.

Technical parameters of glow-wire testing machine:

1. Glow-wire temperature: 500 ~ 1000℃ adjustable

2. Temperature tolerance error: ±10℃ at 500 ~ 750℃, ±15℃ at > 750 ~ 1000℃

3. Temperature measuring instrument accuracy ±0.5

4. Searing time: 0-99 min 99 s adjustable (30s is generally selected)

5. Ignition time: 0-99 minutes and 99 seconds, manual pause

6. Extinguishing time: 0-99 minutes 99 seconds, manual pause

7. The K type thermocouple: Φ 0.5 mm armoured thermocouple (warranty)

8. Hot wire: Φ nichrome wire 4 mm

9. Glow-wire pressure on sample: 0.8-1.2n

10. Ironing depth: 7mm±0.5mm

11. Reference standards: GB/T5169.10, GB4706.1, IEC60695, UL746A

12. Studio volume: 0.5 m3
