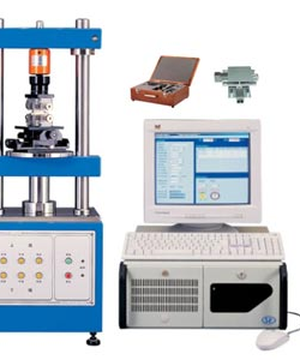

Product name: automatic plug and pull force testing machine product model:

Product name: automatic plug and pull force tester

Product description: automatic plug and pull force tester, plug and pull force tester profile:

Fully automatic plug and pull force testing machine is suitable for testing the insert force and pull out force of various connectors. With the patented automatic centering device, it can get completely accurate test of pull out force. Windows-based test software, Chinese interface operation, can easily set test conditions, store test data, and output reports to EXCEL format for editing.

Insert force testing machine can test items:

Connector single hole plug test

Connect whole row plug test plug life test of connector

Connector single Pin on plastic retention test

Connector NORMAL FORCE test

General compression, tensile failure test

At the same time on the side line of the contact impedance machine (optional)

Insert and pull force testing machine features:

Printable and stored graphics (plug displacement curve, life curve, check report)

Test data stored on hard disk (each batch of data can be stored for an unlimited number of times)

Test conditions are written by the computer set, convenient and fast (including plug and pull travel, speed, pause time... Etc.)

Inspection report header can be modified at any time (both in Chinese and English)

Check report can be transferred to Excel for editing

Specification of plug and pull force testing machine: xt-zcb50

Minimum display stroke: 0.01mm

Inner distance between two columns of the machine: 240mm

Type of load: 50kgf

Minimum display load: 0.01 (kg, lb, N, g)

Accuracy under load: 0.2%

Maximum test stroke: 150mm

Test speed range: 1-200mm/min transmission mechanism: ball screw

Drive motor: servo motor

Appearance size: 400x300x950mm

Machine weight: 75kg

Power supply: AC 220V
