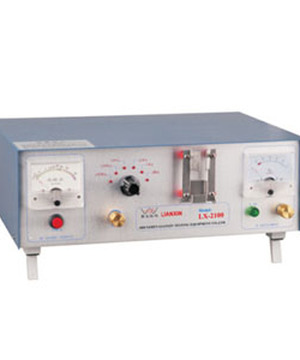

Product name: LX2100C power wire tester product model: LX2100C

AC/DC power cord, audio cord and headphone cord, coaxial video cord for testing plugs

It can be used to test electrical test such as conduction resistance, conduction, short circuit, circuit break and relative length

Different quality conditions have different light and sound display

It can be used to detect small transformer insulation resistance, small capacitor and semiconductor diode reverse leakage and insulation resistance

Test high voltage: dc peak of 500V

The ultra-audio signal is 50KHZ5V

Short circuit test: voltage 6V, current 50mA,

Short circuit resistance < 10 Ω audible and visual alarm

Minimum test length: ≥ 0.1m (coaxial)

Insulation resistance: 2, 5, 7, 20, 50, 100, 200M

Working power supply: AC220, current 0.5a

Working hours: can work continuously
