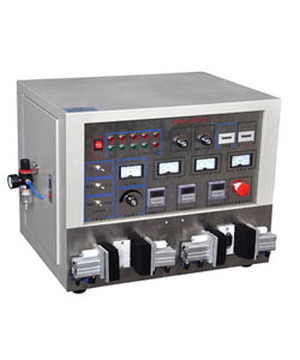

Product name: lx-12a plug comprehensive line tester product model: LX12A

Lx-12a single head power plug line comprehensive tester

Compliance standards: UL, VDE, CSA, SAA, t-mark, KS, IRAM, CCC, etc

Scope of application: test the conduction polarity, insulation, core voltage, exposed copper and relative length of the power plug wire

Main functions:

1) adopt panasonic PLC as the main control

2) test line: 2P non-polarity, 2P click non-polarity, 2P polarity, 3P non-polarity, 3P polarity

3) counting function: automatic counting and ejecting function for qualified and defective products

4) qualified products are automatically eject and printed with qualified mark; Defective products automatically lock mold and sound and light alarm

Main parameters:

1) insulation voltage DC500V; Insulation resistance: 2, 5, 20, 50, 100, 200 m Ω six gears

2) the internal high voltage AC is continuously adjustable from 0-5kv; Leakage current: 0.5, 1.0, 1.5, 2.0, 3.0, 5.0, 10, 20mA

3) external high voltage AC 4KV/lmA

4) test time: the time of insulation, inner and outer high voltage can be set arbitrarily

5) wire sensitivity ≥10pF

6) air pressure ≤4Kgf/cm2
