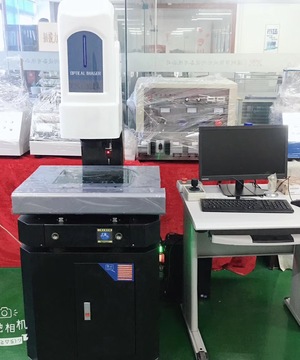

Instrument model dbm-322

Instrument parameters:

Measuring range (mm)

X 300

Y 200

Z 200

Working table (mm)

Hard aluminum table 460*360

Glass countertops 360*260

Bearing 30 kg

Imaging and measurement system

Measuring speed MAX:500mm/s

CCD American TEO high resolution color camera 600TV line

Zoom lens zoom lens 0.7-4.5x (coaxial light is optional)

Magnification 30-235x

Working distance 82mm

Display resolution 0.001mm

Linear precision (cylindrical m) XYZ axis ≦(3+L/200)um,Z axis ≦(5+L/200)um

Overall size (mm) 900*720*1700

The weight of the instrument (kg) is 230kg

The lighting can be programmed to control the LED surface light and contour light

Power 220 v + 10% (AC) of 50 hz

The quality characteristics

X marble base, marble column, guaranteed to have extremely high stability and rigidity.

X precision v-type guide rail and grinding ball screw, with panasonic high-performance servo motor full closed-loop control, high stability, high precision, fast speed.

X TEO USA high resolution 600 line color camera guarantees high quality measurement picture.

X variable lens, after changing the multiplier does not need to re-select the scale.

X programmable three-ring eight-area LED surface cold light source, straight axis contour cold light source, so that the light source of the measurement requirements of more powerful.

X precision optical ruler 0.001mm.

X independent research and development of powerful automatic 3D measurement software, automatic measurement.

X can be equipped with British Renishaw contact probe or Japanese keene laser probe.
