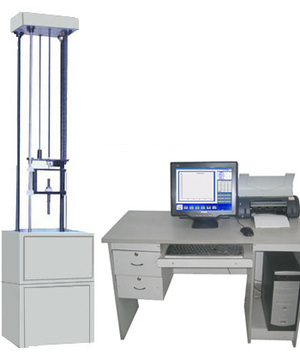

Product name: microcomputer drop hammer impact testing machine product model:

This instrument is designed in accordance with gb11548-89 and other standards. This testing machine is suitable for the impact test of plastic pipes, plates and their products to determine the impact resistance of materials. The drop hammer impact tester is suitable for the impact test of thermoplastic pipe, pipe fitting and hard plastic sheet. According to gb6112-85, gb11548-89, according to user requirements can also conform to astmd3029-84, iso3127-80. The instrument is characterized by compact structure, convenient operation, safe operation and stable performance.

The maximum measuring range of energy of the equipment is 300J, which can be tested by method A, B and C. Semi-automatic pneumatic clamping device; Computer automatic control of falling height and lifting of falling hammer; The electromagnet captures automatically to prevent the sample from being impacted twice. The equipment is equipped with buffer device to prevent damage to the falling hammer impact surface; After the test, the impact damage quality and the corresponding data can be calculated and displayed automatically by the computer. After the test, the test results of all samples can be automatically marked on the table, which is intuitive and clear. Test data and tabular forms can be automatically edited into reports and printed.

Main technical indicators:

Maximum impact energy: 300 J (the impact energy value can be increased according to the user's requirements; Up to 2000J)

Maximum impact height: 2000 mm scale error ± 1%

Weight range: 0.25-15kg

The maximum combined mass of drop weight is 15KG ± 0.1%

Punch specification: A R=10mm

B R = 20 m

C R = 5 mm

BB R = 30 mm

The deviation between the impact center and the fixture center should not be greater than 2mm

The maximum lifting force of the electric lifting mechanism is 20kgf

The maximum suction force of traction electromagnet is not less than 20kgf

Tube v-shaped tray 200×300×25mm3

Plate type ring splint Ф 40 + / - 1.0 mm

Ф 80 + / - 2.0 mm

Ф 130 + / - 2.5 mm

Sample size diameter 20-400mm

Standard configuration:

Host a

One control system

One collection system

One set of test software

Computer suite

One printer

One set of test fixture

Hammer head four

One set of test weights

1 set of supporting tools:
