Description of parameters of tf-603b electromagnetic vibration table

Electromagnetic vibration table (testing machine) is widely used in national defense, aviation, aerospace, communications, electronics, automobiles, motorcycles, home appliances and other industries. This type of equipment is suitable for early fault detection, simulation of actual working conditions and structural strength test.

This series of products has a wide range of application, wide application area, and remarkable and reliable test results.

Electromagnetic vibration table (testing machine)

1. Adopt frequency converter + independent research and development of measurement and control system to make the equipment work more stable and more reliable;

2. The test table adopts aluminum plate, precision machining and ultra-quiet;

3, the electrical control box adopts vertical box, beautiful structure, good stability, easy to operate;

4, sweep and fixed frequency, FM operation mode, time control, adapt to different industry test requirements

5. Strong anti-magnetic and anti-interference ability

6, with safe and reliable protection function

Main technical parameters of electromagnetic vibration table (testing machine) :

(1) vibration table size: 500X500mm;

(2) vibration direction: vertical + horizontal;

(3) maximum load: 80KG;

(4) frequency range: 1-200hz;

(5) sweep frequency range: 1-200hz;

(6) amplitude: 0-5mm;

(7) time control: in seconds;

(8) power of vibration motor: 2.2kw;

(9) power supply voltage: 220V± 10%;

(10) maximum current: 5A

Product name: electromagnetic vibration table tf-603b product model: TF603B

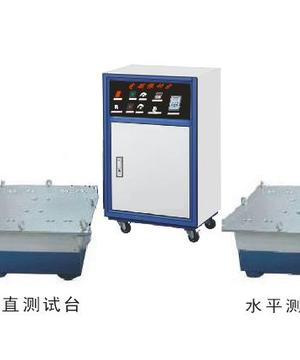

Vertical horizontal electromagnetic vibration table
