Product name: lx-12b product model: LX12B

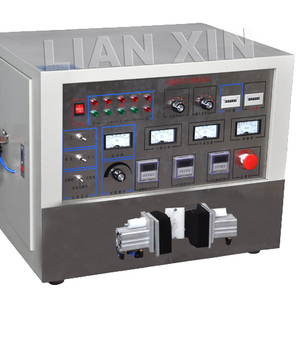

Lx-12b single-head plug comprehensive tester

Compliance standards: UL, VDE, CSA, SAA, t-mark, KS, IRAM, CCC, etc

Scope of application: test the conduction polarity, insulation, core voltage, exposed copper and relative length of the power plug wire

Main functions:

1) adopt panasonic PLC as the main control

2) test line: 2P non-polar, 2P click non-polar, 2P unpolarized, 3P unpolarized, 3P unpolarized

3) counting function: automatic counting and ejecting function for qualified and defective products

4) qualified products are automatically eject and printed with qualified mark; Defective products automatically lock mold and sound and light alarm

Main parameters:

1) insulation voltage DC500V; Insulation resistance: 2, 5, 20, 50, 200 m Ω i00, six gears

2) the internal high voltage AC is continuously adjustable from 0-5kv; Leakage current: 0.5, 1.0, 1.5, 2.0, 3.0, 5.0, 10, 20mA

3) external high voltage AC 4KV/lmA

4) test time: the time of insulation, inner and outer high voltage can be set arbitrarily

5)E maximum current: 18~25A; L, N pole current 3~5A

6) wire sensitivity ≥10pF
