Product name: ventilation aging box lx-8826 product model: ventilation aging box lx-8826

The product description

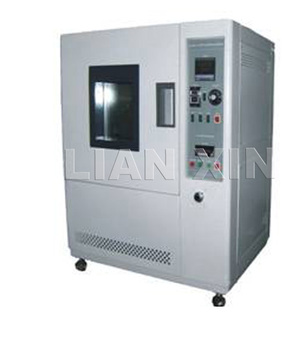

Lx-8826 ventilation aging tank

Scope of application:

The aging box is used to test the insulation of wire and cable or the coated rubber test sheet

The tensile strength and elongation of specimens before and after aging were compared. This machine USES hot air

Circulation mode, promote the aging of the test piece, the inner box is tight, with the inner box replacement

Air device, equipped with automatic over-temperature cut-off protection device, in line with ul-1581

Experimental requirements.

Main parameters:

1) PID temperature control

2) temperature range: RT+5~3000C 8)

3) temperature fluctuation: 0.5% (at the highest temperature)

4) temperature uniformity: 1% (calculated at the highest temperature)

5) heating time: 60 minutes

6) air change: Max. 300 times/hour (adjustable)

7) power: 7KW

8) rotating speed: 5-10 RPM

9) studio size: 55*55*55cm

10) stainless steel liner, shell cold rolled steel plate static point spray painting

11) overall size: 116*148*85cm

12) power maintenance and automatic switching functions are optional
