Product name: microcomputer packaging compression machine tf-203b product model: TF203B

Tf-203b microcomputer packaging compression machine

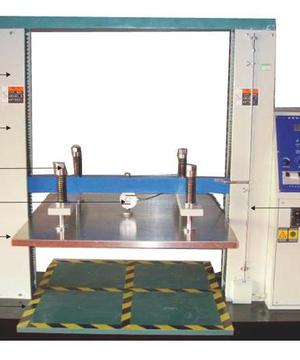

▋ microcomputer carton compression testing machine

This machine is used to test the compressive capacity of the packaging container and corrugated in the state of transportation, storage and stacking. Its performance fully conforms to the requirements of GB/ t4857.3-92,GB/ t4857.4-92 and the national standard iso2872-2001 in the destructive test stacking strength test on the test equipment.

Compressive tester ▋ microcomputer software functions

1. Arbitrary switching of units: force: kg/N/lb;

2, with printing function: automatic printing report,(Chinese) print (maximum strength, average, date

▋ microcomputer carton compression testing machine parameters

Transmission mode: AC variable frequency motor

Capacity: 1T/ 2t /5T (optional)

Power supply: 380V or 220V;

Control system: ac variable frequency gear motor + frequency converter.

Display: LED display of Chinese digital tube;

Accuracy of + / - 0.5

Travel: 1000mm(customizable)

Measurement speed: 12-35mm(fixed speed 12.7, 20, 50, 100, 200)mm non-polar (or specified)

Test space :1000*1000*1200mm

Protection device: leakage protection/overload automatic stop protection/stroke limit protection

Print function: automatically print report,(Chinese) print (maximum strength, average, date
