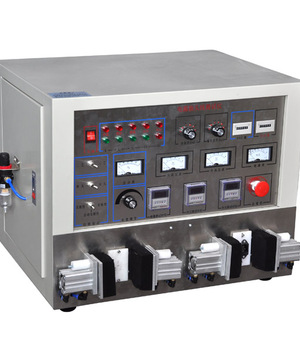

Product name: lx-221b product model: LX221B

Lx-221b single and double head power plug line comprehensive tester

Compliance standards: BsI, uL, VDE, CSA, SAA, t.ark,KS, IRAM, CCC, etc

Scope of application: test the conduction polarity, insulation, core voltage, exposed copper and relative length of the power supply plug wire, test the breakage rate of copper wire

Main functions: 1) adopt panasonic PLc as the main control

2) test line: single head: 2P non-polarity, 2P click non-polarity, 2P polarity, 3P non-polarity, 3P polar double head: 2P non-polarity, 2P parallel lines, 2P cross, 3P parallel lines, 3P cross

3) counting function: automatic counting and ejecting function for qualified and defective products

4) qualified products are automatically eject and printed with qualified mark; Defective products automatically lock mold and sound and light alarm

Main parameters:

1) insulation voltage DC500V; Yin insulation resistance: 2, 5, 20, 50, 100, 200 m Ω six gears

2) adjustable internal high voltage AC 0-5kv; Leakage current: 0.5, 1.0, 1.5, 2.0, 3.0, 5.0, 10, 20mA

3) the external high voltage AC is continuously adjustable from 0 to 5KV / 1 mA

4) test time: the current insulation, inner and outer high voltage time can be set arbitrarily

5) e-pole 25A large current test; L, N - pole band is 3A / 5A current test

6) wire sensitivity ≥l 0pF

7) pressure ≤4Kgf/cm2

8) copper core wire broken 30% alarm
