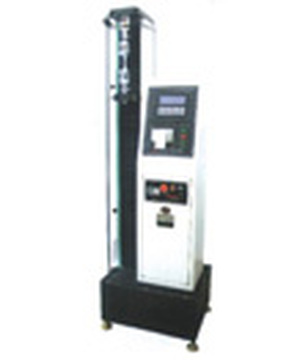

Product name: universal material testing machine tf-103a product model: TF103A

The tensile (compression) force material testing machine is widely used in all kinds of hardware, metal, rubber rubber shoes industry leather service textile, wire and cable, terminal, plastic film and other kinds of materials, testing its tensile split-peel compressive breaking elongation and other properties test performance, using economic measurement and control system, all Chinese display. Can be connected to a micro printer to print the measurement results.

▋ microcomputer universal material tensile testing machine software (such as a digital tube LED display)

1. Parameter setting is handled in the form of dialog box, which is prompted layer upon layer and easy to operate;

2. LED display in simplified Chinese;

3. Arbitrary switching of units: power: kg/N/lb;

4, printing function: automatic printing report,(Chinese) print (maximum strength, average, date

5. Accuracy 0.5

Specification and technical parameters

★ test capacity: 200,500 Kg;

★ test distance space: ≤800mm

★ display induction: LED digital disk display and high precision load element;

★ with printing function to display the test value/maximum value/fracture value

Transmission mode :AC variable frequency motor or dc speed regulating motor

★ force precision: the value of ±1%

★ test speed: 25mm/min ~ 500mm/min;

★ speed accuracy: indicating value within ±1%;

★ units arbitrary switch: force: kg/N/lb;

★ automatic homing function;

★ overload protection function can be set;

★ fixed load and positioning shift and other test methods.
