Product name: lx-1000vtr product model: LX1000VTR

The product description

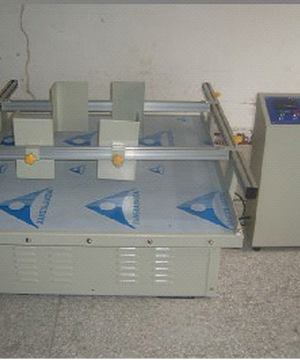

Lx-1000vtr simulated vehicle transport vibration test bed

The simulated transportation test is to detect whether the product packaging design conforms to the transportation conditions

Simple and necessary means, as long as the standard testing equipment, can be done

To quality assurance, avoid unnecessary loss. This transport platform is based on the United States

National and European transport standards. With reference to similar equipment in the United States,

It has the advantages of high precision, low noise, easy operation and low price.

Can be widely used in toys, electronics, furniture, gifts, ceramics and other products packaging

Detection.

Technical specifications: model lx-1000vtr

The vibration frequency (RPM) is continuously adjustable from 100 to 300RPM in accordance with ASTM standards

Amplitude 1 inch (25.4mm) +15% Max load 100 LBS

Working table effective size 1000*900mm

Digital display speed accuracy is not greater than ±3 RPM

Working time setting range 0-99.99H

Motor power 1HP

The supply voltage is 220V 50Hz single phase

The maximum current 5A weighs about 200KG

Dimensions (length * width * height) 1100*1000*700mm
