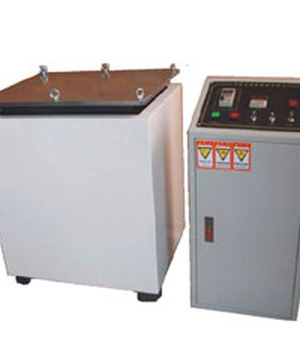

Product name: programmable mechanical vibration table tf-602 product model: TF602

Tf-602 mechanical vibration table
Tf-602 programmable mechanical shaking table

To test the vibration resistance of finished products or components, such as electronics, electrical appliances, etc., so as to understand the influence and change of product quality or structure caused by the vibration of the products under a certain frequency and amplitude.

Mechanical vibration table (testing machine)

1. Variable frequency motor + independently developed measurement and control system is adopted for control, making the equipment work more stable and more reliable;

2. Test table adopts A3 board, precision machining, ultra-quiet;

3, the electrical control box adopts vertical box, beautiful structure, good stability, easy to operate;

4, sweep and fixed frequency, FM operation mode, time control, adapt to different industry test requirements

5. A test table can meet the requirements of vertical/horizontal vibration test;

6, with safe and reliable protection function

Maximum test load: 60KG

Frequency range: 5-60hz

Sweep range: 5-60hz

Amplitude of no-load displacement: 0-5mm

Direction of vibration: vertical + horizontal

Vibration time: 0-9999h /M/S can be set arbitrarily

Power consumed: 1.5KVA

Cooling method: air cooling

Standard: GB/T2423.10
