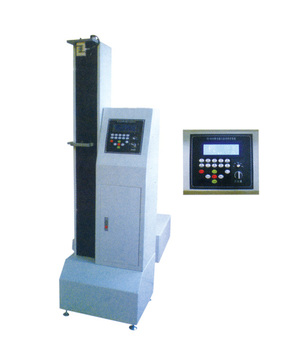

Product name: universal material tensile testing machine tf-102 product model: TF102
Electronic tension machine adopts microcomputer control, single - column frame, sensor force measurement system, stepless speed regulation. Its structure is novel, digital processing accurate, simple operation, easy to use and maintain. This machine is a high-precision, multi-purpose testing machine for the mechanical properties of metal and non-metal materials, which can accurately measure the physical properties of various materials under the state of tension. And can be equipped with the department's special software system into the computer, direct computer control, can be used for scientific research departments, colleges and universities and industrial and mining enterprises on a variety of materials for mechanical properties analysis and production quality inspection.
Technical parameters:
1. Maximum load of force measurement: 500kgf(can be customized according to customer requirements)
2. Induction mode: high-precision load element (sensor)
3. Unit switching: KGF, N, LBF
4. Decomposition degree of load: 1/10000 no classification within the full range
5. Accuracy level: 1
6. Load accuracy: within ±1.0% of the indicated value
7, display mode: Chinese liquid crystal display, with printing function to store data (can display the test value/maximum value/fracture value/elongation/tensile strength)
8. Speed range: 25mm/min--500mm/min
9. Speed input: stepless speed regulation or constant speed of 50, 100, 150,200, 300mm/min
10. Test stroke: 800mm (excluding fixture)
11. Printing function: maximum power value, breaking value, elongation, time, etc
12. Safety device: protection of travel limit
13. Overload protection: over 10% of the maximum load of the machine is automatically protected
Power system: AC motor
15. Control mode: inverter control, high precision encoder tracking displacement
16. Fixture configuration: select fixture according to user's product requirements
17. Power supply voltage: AC220V 50Hz
18. Weight: about 120k
