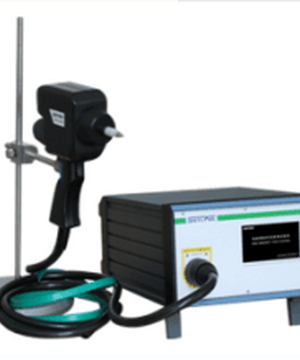

Product name: electrostatic generator product model: domestic

Working principle:

The electrostatic generator rod can generate ions. The device consists of a sturdy rod wrapped around the ion needle and connected to a high-voltage power supply. When the voltage reaches or exceeds 4kv, it will fill the air around the electrostatic rod with ions. The function is to make one kind of material electrified, adsorb to another material surface. Used for positioning, fixing, adsorption and so on. Mainly used in printing, plastic processing transport positioning, adsorption and holding process, as well as floor, glass, high-grade stainless steel, plastic plate automatic sticker film process.

Product features:

1. Stable performance.

2. Easy installation.

3. Output voltage can be adjusted continuously.

Product parameters: voltage: 220V 50Hz /60Hz

Generator volume: 230 (W) X140 (H) X230 (D)

Operating temperature: 32 F(0 C)~122 F(50 C)

Output voltage: 3~30Kv ()

Output current: Max 0.3ma

Distance for use: 50mm

Length of generating rod: 200mm (customizable)

Weight: 3.5 Kg
