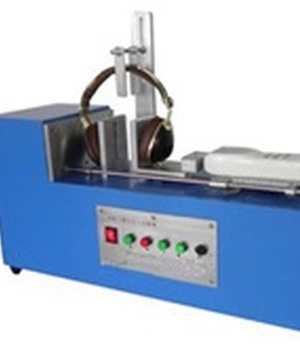

Product name: Headphone clip force tester product model: lx-8816b

I. overview of the machine:

This machine is used to measure the contraction and clamping force of earphone, and it is used to measure the force between the straight open test pieces. It is the necessary testing equipment for manufacturers to analyze the contractile force of earphones.

Main technical parameters

* the machine is composed of sensor system, electric displacement control system and software LCD screen

* shows maximum power to maintain; Accuracy 0.01kg. F (or as the case may be)

* unit display: multiple units display: LB, N, KG

* speed range :50-300mm/min (adjustable by analogy)

* standard distance: 0-180mm

* control: electric control + slider

* protection device: micro switch protection,

* displacement ruler: cloth ruler + pointer

* displacement control: eccentric wheel

* fixture: 2 sets

* machine weight (approx.):45kg

Tension meter optional
