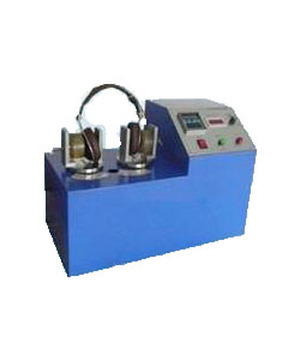

Product name: Headphone torsion tester product model: LX - 8816 - d

Purpose this tester is specially used to test the strength of the number of torsion resistance of the earphone from various angles.

B. Main technical indicators

1. Working power supply: AC 220V/50Hz

2. Power: 65W

3. Test speed: 5-60 times/min adjustable

4. Twisting Angle: 30° (+/-15°)

5. Test station: 1 station

6. Clamping range of fixture: about 40mm-50mm

G. Fixture test width: about 60mm

8. Total number of twists: 0-999999 preset

9. Frequency reset: automatic and manual conversion function

10. Volume: 500*400*320mm

11. Weight: about 48kg

12. Speed display: LED digital display

Speed control: stepless speed regulation

14. Angle: dial + pointer indication
