Product name: anti-static tester product model: domestic

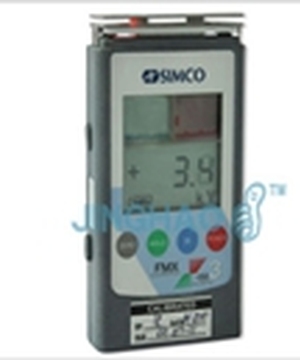

SIMCO fmx-003 electrostatic field tester is a non-contact portable electrostatic field tester, which is used to measure the surface electrostatic value of objects and the ion balance of electrostatic elimination equipment.

The shell is made of anti-static material, and has earthing buckle to ensure the correct and reliable measurement results

The light. There is an ion balance measuring plate, measuring the residual voltage of electrostatic elimination equipment, can be measured in the range of +/ -200v

1. Ion balance measuring plate (+/ -200v) can be equipped;

2. Simply press reset to zero;

3. Single press to display lock;

4. Idle automatic shutdown;

5. Battery performance display.

Power: effective detection of ESD workplace equipment, work surface, tools with electrostatic charge.

Features: LCD/level display detection data, test data retention, digital zeroing display, high/low range.

Output: red LCD shows positive charge, blue LCD shows negative charge

Measurement range :(0 ~ ±1.49kv low range), plus or minus 1kv-20kv(high range).

Test accuracy :± 10%

Power source: 9 v

Precision: low range accuracy: plus or minus 0.1kv; High range accuracy: plus or minus 1kv

Input voltage :9V, 6F22 manganese battery

Electrostatic field measurable :+/-(0.00- 20.0kv) (automatic display adjustment)

Standard ranging :25mm+/-1mm

Ion balance can be measured :+/-(0-200v)

The measurement distance is based on ESD- stm3.1-2000 lonization standard

LCD display updates: 5 times per second

Reaction time :1 second

Working temperature and humidity :10? 40 deg C/RH: 0? 60% R

Graphic display: positive: red/negative: blue

Audible alarm: startup/idle automatic shutdown/beyond the measurable range

Automatic shutdown: idle for about 5 minutes

Measurement mode switching

Electrostatic field: press the Power switch to make a beep sound

Ion balance (please install the ion balance measuring board first) press Zero and Power at the same time, there are two beeps sound

Weight/volume 0.13kg/11.5cm*6.5cm*2.5cm (with battery)
