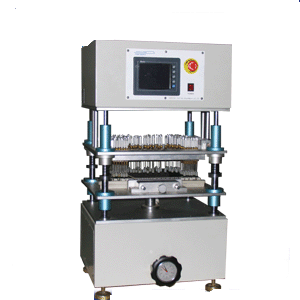

Product name: keyboard key life tester product model:

I. function description:

This machine can test the NOTEBOOK (mobile phone, PDA) key and various buttons, switch durability test. Several products can be tested at the same time (each product can be tested at multiple points) and each button probe can be set with different pressure and different height.

Ii. Technical parameters:

Action stroke 10mm (fixed)

The workpiece height adjustment range is 100mm

The clamping capacity of the fixture is 450*250mm

Installation range of probe 450*250mm

Number of tests 99999999

The experimental speed is 60~420rpm/min

The external dimension is 526*426*980mm

Voltage is AC220V

Weight 100 kg

Standard accessories:

6 fixed rods for measuring head

Load adjustment probe 20PC (multiple available)

One set of large-scale all-purpose smelter

Load adjustment probe:

The load range is 100-170g

Adjust the height of measuring head by 10mm

The minimum spacing between the two probes is 10mm in X direction and 12mm in Y direction
