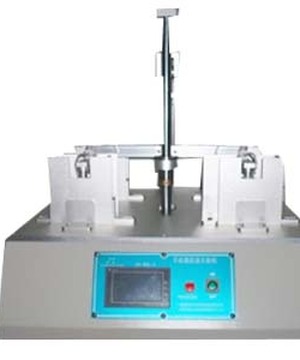

Product name: suction cup mobile phone micro-drop tester product model: lx-8649b

Mobile desktop drop tester

※ is a special device for desktop drop fatigue test of mobile phone.

※ reasonable structure, unique, suitable for different types of mobile phones.

※ with mobile phone flip detection function.

Stable operation, low noise, maintenance free.

In the process of simulating the user's use, the experiment is conducted by gently dropping the mobile phone to the horizontal surface such as the desktop.

Manually put the mobile phone on the drop panel of the reset fixture → the two cylinders of the reset push baffle to reset the mobile phone and return → the motor drives the lifting mechanism to descend through the synchronous belt → the clamping manipulator grips the mobile phone → the lifting mechanism rises to the set height and the manipulator is released → the mobile phone falls freely. In this way, continuous free cycle test was carried out, and the total number of times of performance test of the whole mobile phone was completed

Model LX - 8649 - b

Test station 2 working at the same time

Drive motor/cylinder stepper motor /SMC cylinder

The total number of 0-999999 times can be set arbitrarily manually

Speed 1-30 times/min (setting)

Transmission structure pneumatic and electric

Drop height range 50 to 200 mm (adjustable)

Explicit system touch screen operation

Drop contact alloy aluminum/polyformaldehyde

Clamp chuck

Total power 800 w

Working power supply AC220V/50Hz/5A

Volume about 45 * 38 * 45cm/60*55*55cm

About 30 kg weight

1 copy of operation manual, 1 power cord, 1 set of hexagon socket
