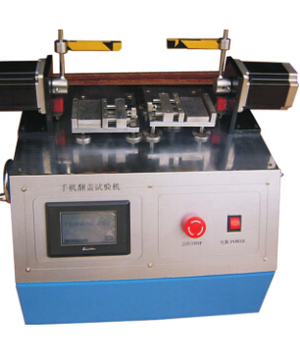

Product name: Mobile phone flip life testing machine AH6501 product model: AH6501

Product name: mobile phone flip life testing machine
Product no. :   AH6501

Product description:

1. Mobile phone clamshell testing machine is a special equipment for mobile phone clamshell fatigue test.

2. Its structure design is reasonable, unique, small size, suitable for limited space or in the temperature control box in the test environment. For different types of mobile phone has full applicability.

3. Using sensors to directly detect the phone clamshell count.

4. Stable operation, low noise, maintenance free.

5.The machine USES LCD touch interface, large interface intuitive generous; The control part adopts PLC, the performance is reliable; Because the stepper motor is used to drive, the Angle is accurate and convenient, and the power supply system is rectified, the service life and reliability of the machine circuit are greatly improved.

This machine can simulate the movement of the mobile phone in real way because it is driven separately by two motors in the simplex position.

This function at the same time to achieve four mobile phone clamshell life test, and do not interfere with each other, in the process also reflects the humanized design style, let the operator, a learning will be.

Main technical parameters

Number of stations: 2 / station

Operation mode: touch screen

Control unit: mitsubishi PLC

Action execution component: stepper motor

Swing arm Angle range: 5 ~ 180 degrees (automatic adjustment)

Clamshell beat: 10 ~ 60 beats/min (automatic adjustment)

Counter: 6-bit (built-in) fixture: anti-static fixture
