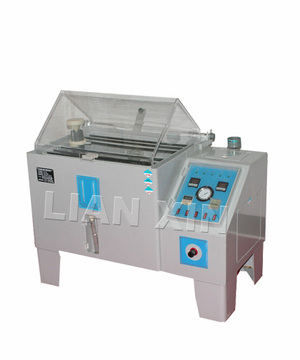

Product name: corrosion resistant salt spray testing machine product model: KH

Product description: corrosion resistance salt spray test box through the assessment of the material and its protective layer of salt spray corrosion ability, as well as the similar protective layer of the process quality comparison, at the same time can be assessed some products of salt spray corrosion resistance ability; This product is suitable for the salt spray corrosion test of parts, electronic components, metal materials and industrial products. The salt spray testing machine is designed for the surface treatment of various materials, including coating, electroplating, inorganic and organic skin film, anode treatment, anti-rust oil and other anti-corrosion treatment, to test the corrosion of its products.

Corrosion resistant salt spray test box meets the standards:

Gb10587-89 technical conditions for salt spray corrosion test chamber.

Gb2423.17-85 test Ka salt spray corrosion test method.

Gb6458-86 NSS test - neutral salt spray test.

Gb6459-86 ASS test acetate spray test.

Gb6460-89 CASS copper accelerated acetate spray test.

Ka IEC68-2-11 test

Corrosion resistance salt spray corrosion test box performance characteristics:

Automatic or manual water filling system is adopted to automatically replenish water level when water level is insufficient.

The precision glass nozzle (PYREX) fog diffuses evenly and naturally falls on the test plate without blocking by crystal salt.

With double overtemperature protection, water level warning to ensure the safety of use.

Temperature controller using digital display, PID control, error ±0.1℃.

The laboratory adopts steam direct heating, the heating speed is fast and uniform, and the standby time is reduced.

Spray tower cone disperser, with fog guiding, fog regulation and uniform fog.

The full air tank is heated and humidified by Henry's law and provides the required humidity for the laboratory.

Brine concentration: 5%; The PH of water is between 6.5 and 7.2.

In addition, the size of the production laboratory according to customer requirements, to meet customer requirements.

Corrosion resistance salt spray corrosion test box project model

Type kh-60 type kh-90 type kh-120 type kh-160 type kh-200

The laboratory size is mm 600*450*400 * 900*600*500 1200*1000*600 * 1600*1000*500 2000*1000*600

Outer box size mm 1075*630*1185 1400*800*1285 1775*1200*1485 2300*1200*1485 2700*1200*1485

Laboratory temperature saline test 35℃±1℃ / corrosion resistance test 50℃±1℃

Saturated barrel temperature brine test 47℃±1℃ / corrosion resistance test 63℃±1℃

Salt water test for acid base value (6.5 ~ 7.2)/corrosion resistance test (3.0 ~ 3.2)

Spray volume 1.0 ~ 2.0ml/h

Laboratory relative humidity > 85%

Sodium chloride solution 5%

The laboratory volume is 108L 270L 600L 800L 1200L

Capacity of salt water tank: 15L, 25L, 40L, 45L, 45L
