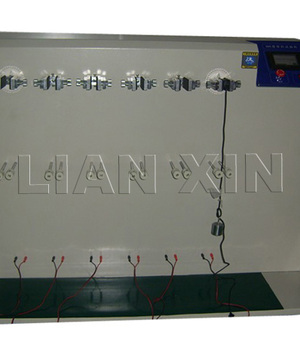

Product name: 540 degree wire bending machine product model: lx-8617d
The testing machine conforms to UL817, CSA222, CCC, VDE, GB2099.1, iec 884-1, SAA and other relevant standards "general safety requirements for flexible wire assembly and power supply flexible wire". Applicable to relevant manufacturers and quality inspection departments for the power line, DC wire bending test.
Used for wire, cable and all kinds of products in a certain speed, Angle, lifting weight, times and other conditions under the test of product folding resistance and performance.
Technical parameters:
|
model |
LX-8617D |
|
Test station |
Bending test of wire at station 1 and station 6 |
|
The count function |
The function of number of test of wire breaking and power failure saving work |
|
Total number of |
0-999999 can be set arbitrarily manually |
|
Bending Angle |
10°-540° (optionally adjustable ±2°) |
|
Test speed |
Adjustable 5-30 times/min (number of direct input) |
|
Farmar weight |
50g, 100g, 200g, 300g, 500g (6 ±2g each, or as specified by the customer) |
|
Counter relay |
Imported European female dragons are used for stability and durability |
|
The motor |
Imported panasonic servo motor and stepper motor (optional) |
|
The system displays |
Sanling PLC + imported 5.7 inch LCD screen |
|
The total power |
1200W |
|
Working power supply |
AC220V/50Hz/2A |
|
Volume of about |
150*650*140cm |
|
The weight of the |
约110Kg |
|
The attachment |
One copy of operation instruction, one power cord, one set of hexagon socket |
