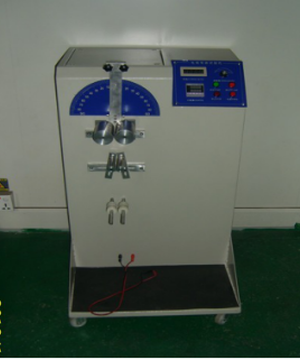

Product name: wire bending testing machine product model: lx-8634b

Wire bending machine lx-8634b

This testing machine meets JIS-C-3005 test standard. The test specimen shall be run through the specified round hole according to thickness and fixed in a well-spaced fixture. After 200 rotation of the wheel, the damage, crack, crack degree and conductor strand breakage rate of the test material shall be checked. With the characteristics of simple operation and excellent performance, can be positive and negative operation, can set the number of times after the number of automatic shutdown.

Technical parameters:

Model LX - 8634 - b

Test station 1

The total number of 0-999999 times can be set arbitrarily manually

Speed 3-20 beats per minute

Fixture spacing 0~500mm adjustable

Off center 85mm

Sample diameter 5mm, 10mm, 15mm, 20mm

Total power 200 w

Working power supply AC220V/50Hz/5A

The volume is about 85*60*H75cm

About 52 kg weight,

1 copy of operation instruction, 1 power cord, 1 set of hexagon socket
