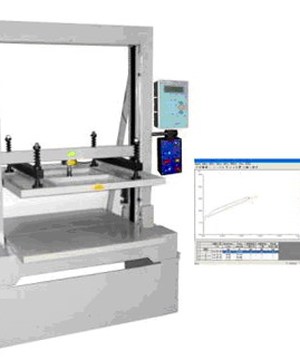

Product name: paper packaging compression testing machine

Design standards: tappi-804, jis-z0212, GB4857.3.4

Application: a special instrument for testing the compressive strength of various packing bodies and cartons. The test results can be used as an important reference for the height of packing boxes for finished products stacked in the factory.

Gauge: 1. Model: GJ - 8211

2. Capacity: 500 kg / 1000 kg / 2000 kg / 5000 kg can be optional.

(the capacity selection method is appropriate to choose the maximum power of specimen failure value ×2 times.)

3. Power indicator:

◎ solubility: 1/100,000

◎ each grid display: 0.05kg / 0.1kg / 0.2kg.

◎ unit of strength: KN and kg can be switched.

◎ sectional area unit: mm2, cm2, in2.

◎ automatic shutdown: maximum capacity set point/upper and lower limit setting (or other special functions).

◎ input items: maximum capacity (high point setting, low point setting), date, batch number, cross-sectional area.

◎ each test result can be called out to view, edit and delete.

4. Test speed: 5~200mm/min, continuously adjustable and arbitrarily set. Generally, the factory has set the commonly used speed of 12.7mm/min return speed of 200mm/min.

5. Test space: 1000×1000×1000mm.

6. Structure: precise double slide, double screw and screw dust - proof telescopic.

7. Appearance size: 1420×1000×1640mm(W×D×H)

8. Machine weight (approx.) : 550kg

9. Operating voltage: 200-240v 50~60HZ 4A
