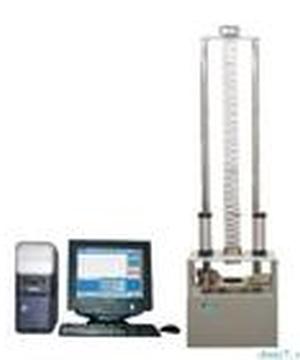

Product name: darts impact testing machine product model:
1. Main USES:
Tlb-30 darts impact testing machine is a kind of test equipment which is specially used to measure the energy (expressed by the impact damage mass) when 50% of the plastic film, thin sheet and steel plate coating are damaged under the impact of free darts at a given height. Can be applied to industrial and mining enterprises, scientific research units, quality inspection departments and schools and other industries. The equipment strictly implements the provisions of GB/T 9639-88.
2. Functional features:
Measurement range: the energy measurement range is from 0.3j-30j, which can be tested by method A and method B.
Sample fixture: semi-automatic pneumatic clamping device, safe and reliable, easy to operate.
Positioning device: the falling height can be adjusted according to the test method.
Lifting device: control the lifting of electromagnet and darts by the button on the control box.
Capture device: the electromagnet captures automatically to prevent the sample from being impacted twice.
Buffer device: the device is equipped with a buffer box to prevent damage to the darts from hitting the surface.
3. Main technical parameters:
indicators
A method of
Method B
Height of falling dart (m)
0.66 + / - 0.01
1.50 + / - 0.01
Dart head diameter (mm)
38 + 1
50 + 1
Weight diameter (mm)
30
45
Weight mass (g)
5, 15, 30, 60
(4 5g and 8 others)
15, 45, 90
(15 g 4, the rest 8)
Weight mass accuracy (%)
+ / - 0.5
Center hole diameter of weight (mm)
6.5 + / - 0.1
Maximum impact energy (J)
30
Impact damage quality accuracy (g)
1
4. Schematic diagram of machinery: see attached drawing
5. Distribution list:
The main machine
a
Control box
A set of
Gas motion clip
A set of
With sets of Fa yards
A set of
Set of tools
A set of
