Product Name: Single Arm Drop Table LX501 Product Model: LX501

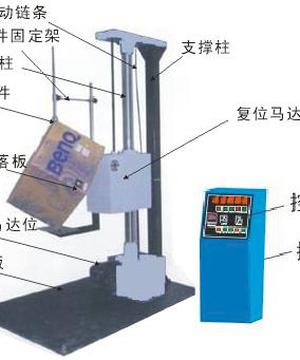

This machine is specially used for testing the damage of the product packaging by falling, and evaluating the impact resistance during transportation and handling, and making a free fall test on the surface, angle and edge of the package, equipped with a digital height display and a decoder for height tracking, so as to accurately give the product drop height, and the error from the preset drop height is not more than 2% or 10mm. This machine adopts a single-arm double-column structure, with electric reset, electronically controlled drop and electric lifting device, which is easy to use; Single-arm setting for easy product placement; The drop arm can be retracted to facilitate the fall of different boxes.
[Applicable standard for single-arm drop table]: ISO 2248 JIS Z0202-87 GB/T4857.5-92
[Function introduction of double-arm drop platform]:

1. It has all the functions of the double-arm drop platform;
2. The low drop height can fall to 300mm;
3. It is equipped with automatic reset function, no need to help by hand;
4. The test results are more accurate when the edges and corners are dropped;
Single-arm drop table specification name: Single-arm drop tester
Height display mode: digital
Drop mode: electric
sample clamping method: diamond, angle, surface
Drop height: 30~150cm (setting adjustable)
Large weight of the specimen: 80KG
Large size of specimen: 600*600*800mm(L*W*H) (can be upon request)
Impact panel size: 1200*1700mm(L*W)
Machine height: 2300mm
Control box: split
Drop height error: ≦±2%
Parallel error between the supporting plate and the impact panel: ≦2°
Weight: 750KG
Power supply: AC 380V, 50HZ
