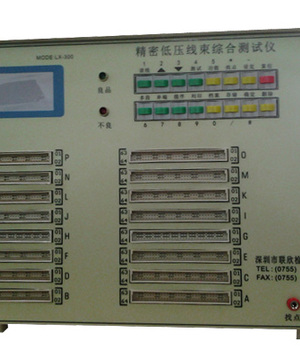

Product name: automobile wire testing machine product model: lx-1024
Product name: automobile wire testing machine product model: lx-1024
Main features of automotive wire testing machine:
Boot - on self - diagnosis, self - correction
128 X64 resolution (320 X240 resolution optional
System can automatically scan learning, automatically find points;
The system provides: advanced loop, multi-segment, sequential (point test), single head test;
Professional car/home appliance wiring harness test support 1024 points;
Advanced, fast instant short break test
Break, single end detection capability, wire length > 15 cm
System provides output control signal, can connect PLC/ printer/bar code machine
Specification of automobile wire testing machine
|
models |
LX-1024 |
||
|
The test points |
128.256.384.512.640.768.896.1024 |
||
|
The test voltage |
DC-12V(DC15V可选) |
||
|
Conduction test resistance gear position |
5Ω.10Ω.20Ω.30Ω.50Ω.100Ω.500Ω.1KΩ.5KΩ.10KΩ.20KΩ.30KΩ.50KΩ |
||
|
Insulation resistance test gear t |
OFF 500KΩ 1MΩ.2MΩ.5MΩ.7MΩ.10MΩ.20 MΩ |
||
|
Data access mode |
Self-learning/manual editing (optional) |
||
|
The test way |
The data of wire to be tested are compared with the standard data |
||
|
Testing capabilities |
Short circuit. Break circuit. Conductivity. Insulation. Instantaneous short circuit. Instantaneous break circuit. Single head test. Multi-stage test. Sequential test (spot test), reverse line test (dislocation), open port test |
||
|
The test speed |
8960P-P/秒（conduction） |
||
|
The test joints |
64PINThe connector |
||
|
Display mode |
128 X64 Chinese monitor (320 X240 resolution optional) |
||
|
Interface of choose and buy Rs-232 port, parallel printer PLC port |
|
||
|
The power supply |
AC 100V ~ 240V voltage input ±10% 50 ~ 60HZ |
||
|
Working temperature |
10～40° |
储存温度 |
0～70℃ |
|
The volume weightAbout 10KG(including accessories) |
|
||
